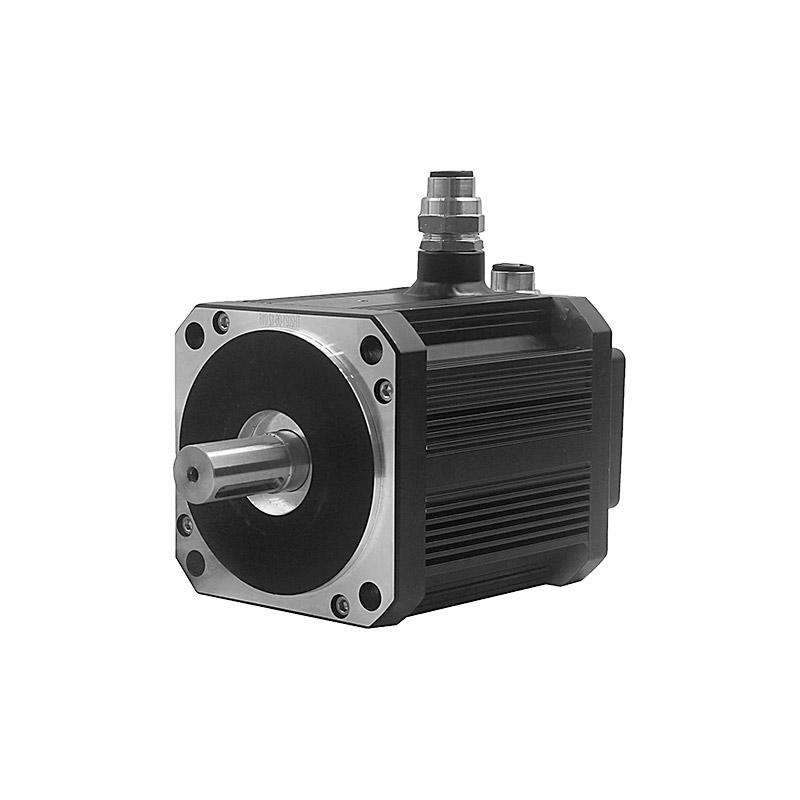

150EX防爆交流伺服

150EX防爆交流伺服

產品類型：防爆伺服電機； 產品型號：150EX； 定制需求：電機接口、電壓、轉速可按客戶要求定制
服務熱線： 0519-86163212

電機型號MOTOR MODEL

電機型號：L(mm)電機型號：L(mm)
150ST-□100XX-EX-XXV249150ST-□100XXB-EX-XXV289
150ST-□120XX-EX-XXV259150ST-□120XXB-EX-XXV299
150ST-□150XX-EX-XXV274150ST-□150XXB-EX-XXV314
150ST-□190XX-EX-XXV299150ST-□190XXB-EX-XXV339
150ST-□240XX-EX-XXV324150ST-□240XXB-EX-XXV364
150ST-□280XX-EX-XXV349150ST-□280XXB-EX-XXV389
150ST-□100XX-EX-XXV224150ST-□100XXB-EX-XXXV259
150ST-□120XX-EX-XXXV234150ST-□120XXB-EX-XXXV269
150ST-□150XX-EX-XXXV249150ST-□150XXB-EX-XXXV284
150ST-□190XX-EX-XXXV274150ST-□190XXB-EX-XXXV309
150ST-□240XX-EX-XXXV299150ST-□240XXB-EX-XXXV334
150ST-□280XX-EX-XXXV324150ST-□280XXB-EX-XXXV359

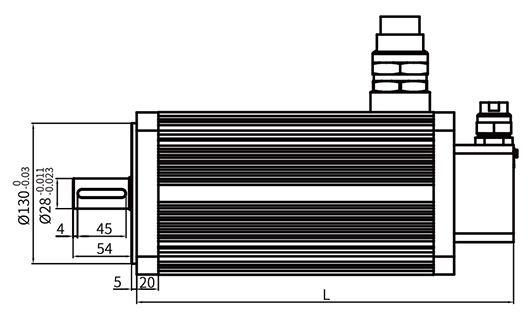

電機尺寸表MOTOR DIMENSION TABLE

尺寸表 尺寸表76603a4d823e4fd6b1ce9cd612699ca7_2.jpg76603a4d823e4fd6b1ce9cd612699ca7_4.jpg

參數表PARAMETER TABLE


DC24VDC48V
電機型號150ST-10030-EX-24V150ST-12025-EX-24V150ST-15030-EX-24V150ST-10030-EX-48V150ST-12030-EX-48V150ST-15030-EX-48V150ST-19030-EX-48V150ST-24025-EX-48V150ST-28030-EX-48V
額定功率(KW)334.533.74.566.28.5
額定電流(A)147.1147.1220.673.590.7110.3147.1152.0208.3
額定轉速300025003000250030003000300025003000
最高轉速360030003600360036003600360030003600
額定扭矩(Nm)101215101215192428
峰值扭矩(Nm)303645303645577284
轉子慣量(kg.cm2)24.429.336.624.429.336.648.76173.2

AC220V
電機型號150ST-10030-EX150ST-12030-EX150ST-15030-EX150ST-19030-EX150ST-24030-EX150ST-28030-EX
額定功率(KW)33.74.567.58.5
額定電流(A)12.114.918.124.230.234.3
額定轉速300030003000300030003000
最高轉速360036003600360036003600
額定扭矩(Nm)101215192428
峰值扭矩(Nm)303645577284
轉子慣量(kg.cm2)24.429.336.648.76173.2

注：電機接口、電壓、轉速可按客戶要求定制
